Automatic Self Cleaning Filter

Automatic Self Cleaning Filter

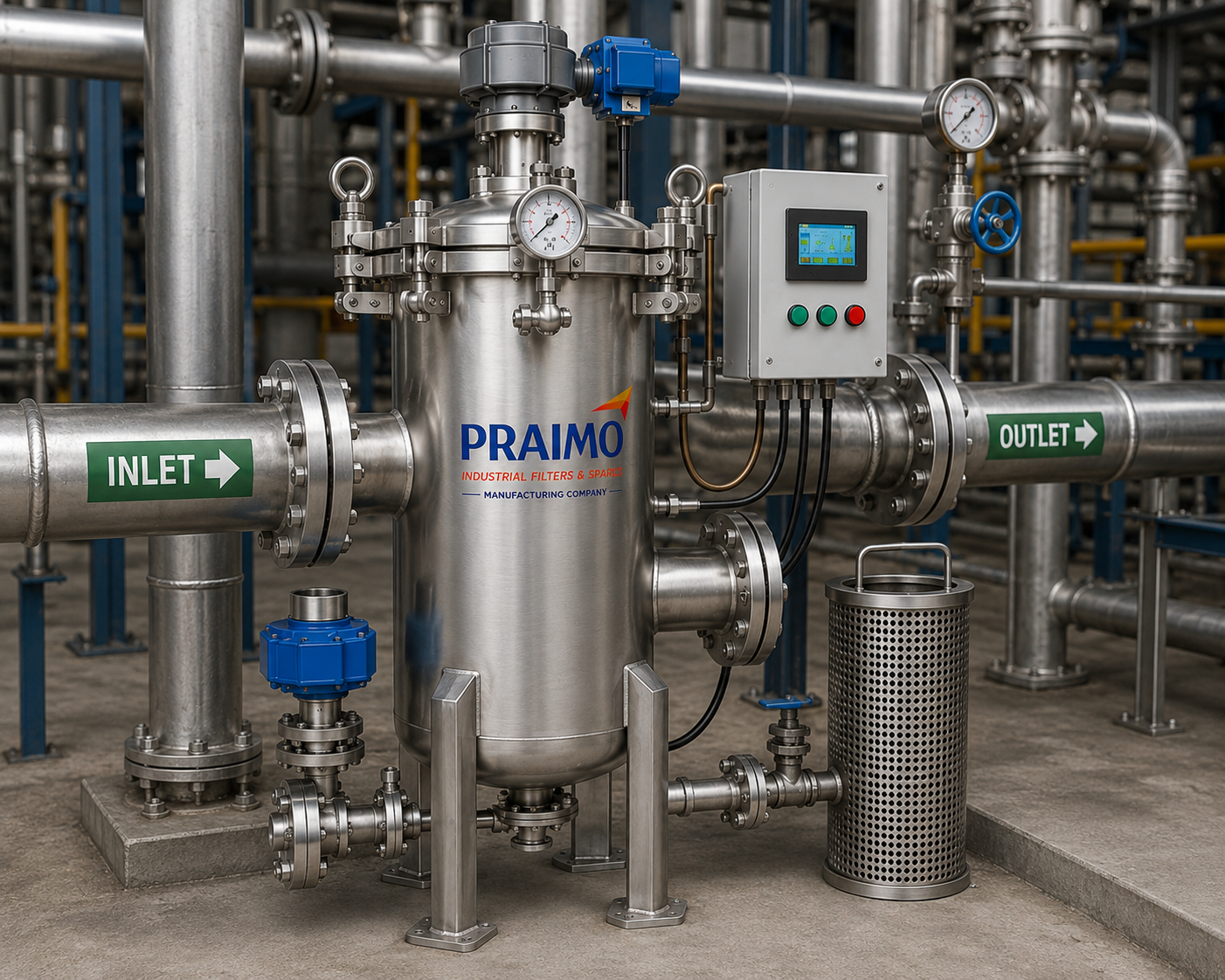

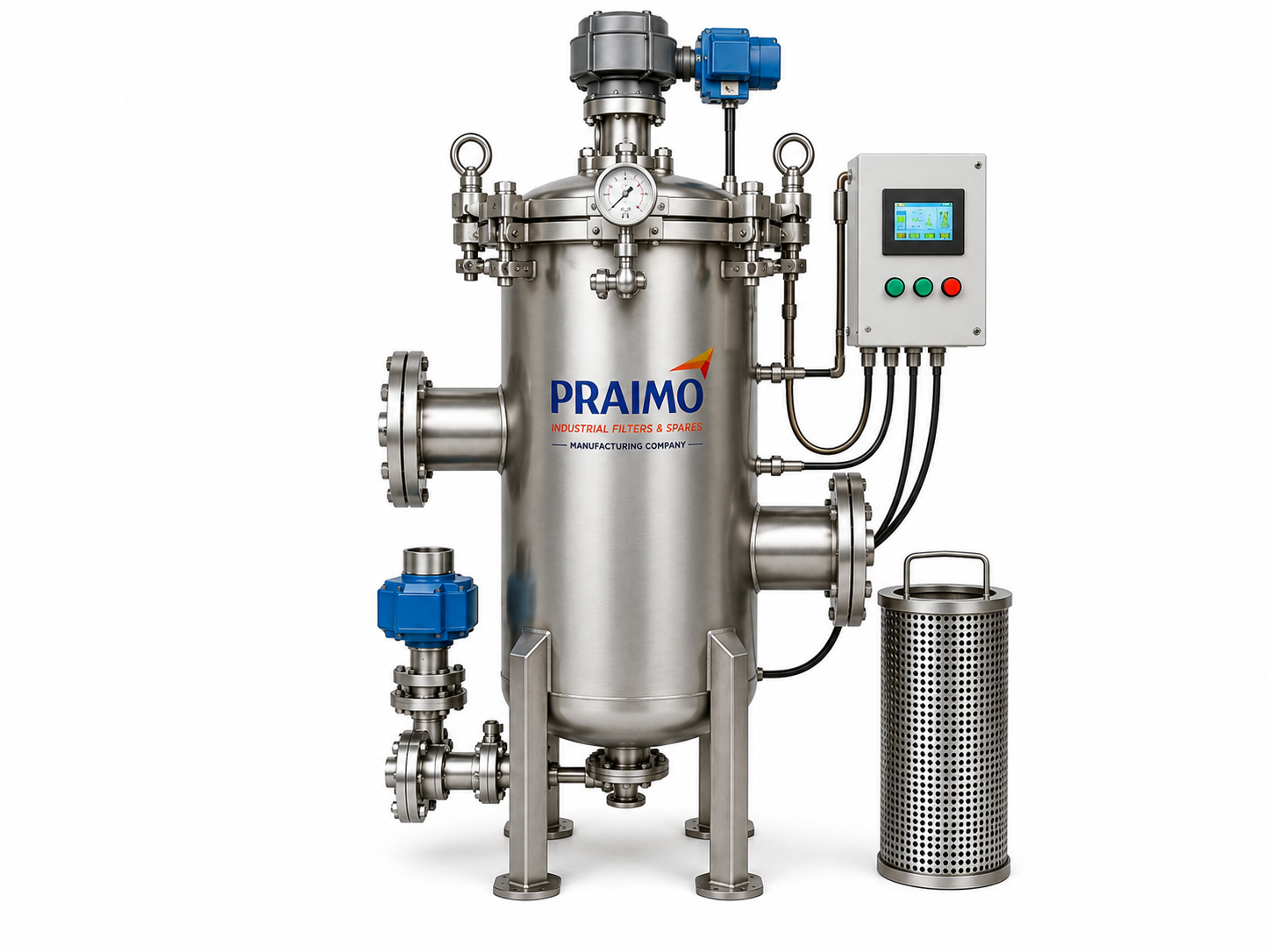

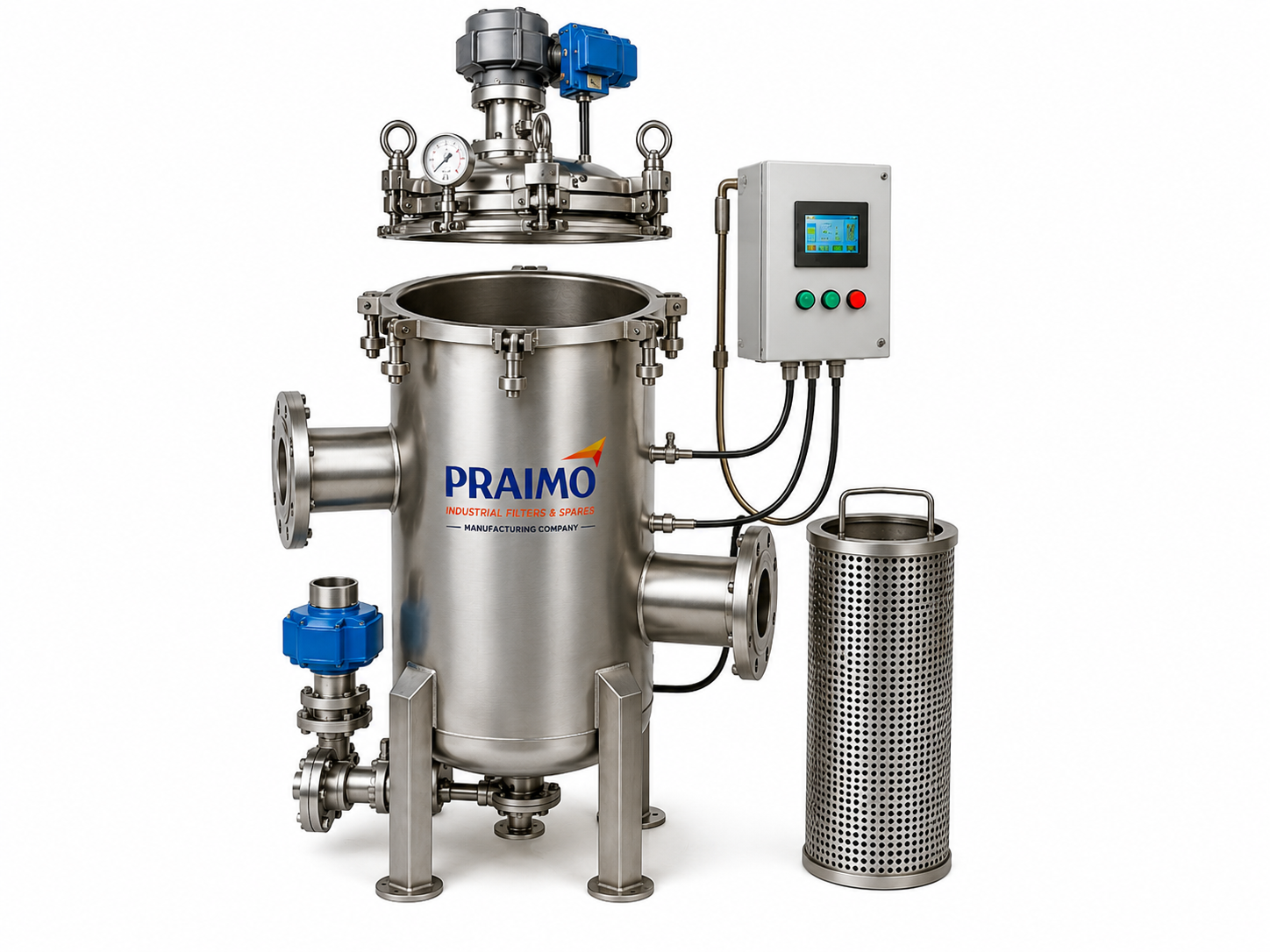

Praimo Automatic Self Cleaning Filter is engineered for continuous industrial liquid filtration with automatic cleaning of the filter element. It is designed for liquids containing suspended solids and helps reduce manual cleaning and maintenance requirements while supporting reliable process operation and equipment protection.

APPLICATIONS:
Water Treatment, Chemical Processing, Petrochemical, Pharmaceutical, Food & Beverage, Oil & Gas, Power Plants, Cooling Water, Marine and Process Industries.

FEATURES:
• Automatic self-cleaning mechanism
• Continuous filtration without shutdown
• SS304 / SS316 stainless steel construction
• High dirt-holding capacity
• Low maintenance
• Long service life
• Low pressure drop
• High flow capacity
• Flanged connections
• Automatic cleaning arrangement
• Custom micron ratings available
• Suitable for liquids containing suspended solids

BENEFITS:
• Reduces manual cleaning requirements
• Supports continuous filtration
• Helps reduce maintenance interruption
• Protects pumps, valves, heat exchangers and downstream equipment
• Supports reliable process operation
• Helps manage suspended solids and high dirt loading
• Supports equipment protection and contamination control
• Helps reduce filtration downtime

OPERATING SEQUENCE:
1. FILTRATION – Contaminated liquid enters the filter and passes through the filtration element.
2. CONTAMINANT RETENTION – Suspended solids are retained by the filtration element.
3. AUTOMATIC CLEANING – The cleaning mechanism removes accumulated contaminants.
4. DIRT DISCHARGE – Collected contaminants are discharged through the drain arrangement.
5. CONTINUED OPERATION – The system returns to normal filtration operation.

TECHNICAL SPECIFICATIONS:
Material: SS304 / SS316 Stainless Steel
Filtration Rating: 25–3000 µm
Working Pressure: Up to 10 Bar
Operating Temperature: Up to 200°C
Connection: Flanged
Cleaning Method: Automatic
Application: Industrial Liquid Filtration
Typical Media: Liquids with suspended solids
Country of Origin: India

OTHER INFORMATION:
The Praimo Automatic Self Cleaning Filter is designed for applications where continuous liquid filtration and automatic removal of accumulated contaminants are required. Final filter dimensions, flow capacity, pressure, temperature, micron rating and cleaning configuration are selected according to the application.

AVAILABLE TYPES:
• Automatic Self Cleaning Filter
• Automatic Backwash Filter
• Automatic Backflush Filter
• Self Cleaning Water Filter
• Automatic Industrial Liquid Filter
• Automatic Screen Filter

CUSTOMIZATION:
• SS304 / SS316 material
• Filtration / micron rating
• Filter configuration
• Connection arrangement
• Pressure requirement
• Temperature requirement
• Flow capacity
• Automatic cleaning configuration
• Custom dimensions
• Application-specific design

SHIPPING:
Secure industrial packing suitable for transportation. Shipping method and delivery schedule depend on product configuration, order quantity and customization requirements.

ORDER DETAILS:
Price: Contact for quotation
MOQ: Contact Praimo
Stock Availability: Contact Praimo
Lead Time: Confirm at quotation
Country of Origin: India
Manufacturer: Praimo Industrial Filters & Spares Manufacturing Company
Location: Ahmedabad, Gujarat, India
Website: https://praimo.com
Email: sales@praimo.com
Phone: +91 88668 82222
