Hydraulic Oil Filtration System

Hydraulic Oil Filtration System

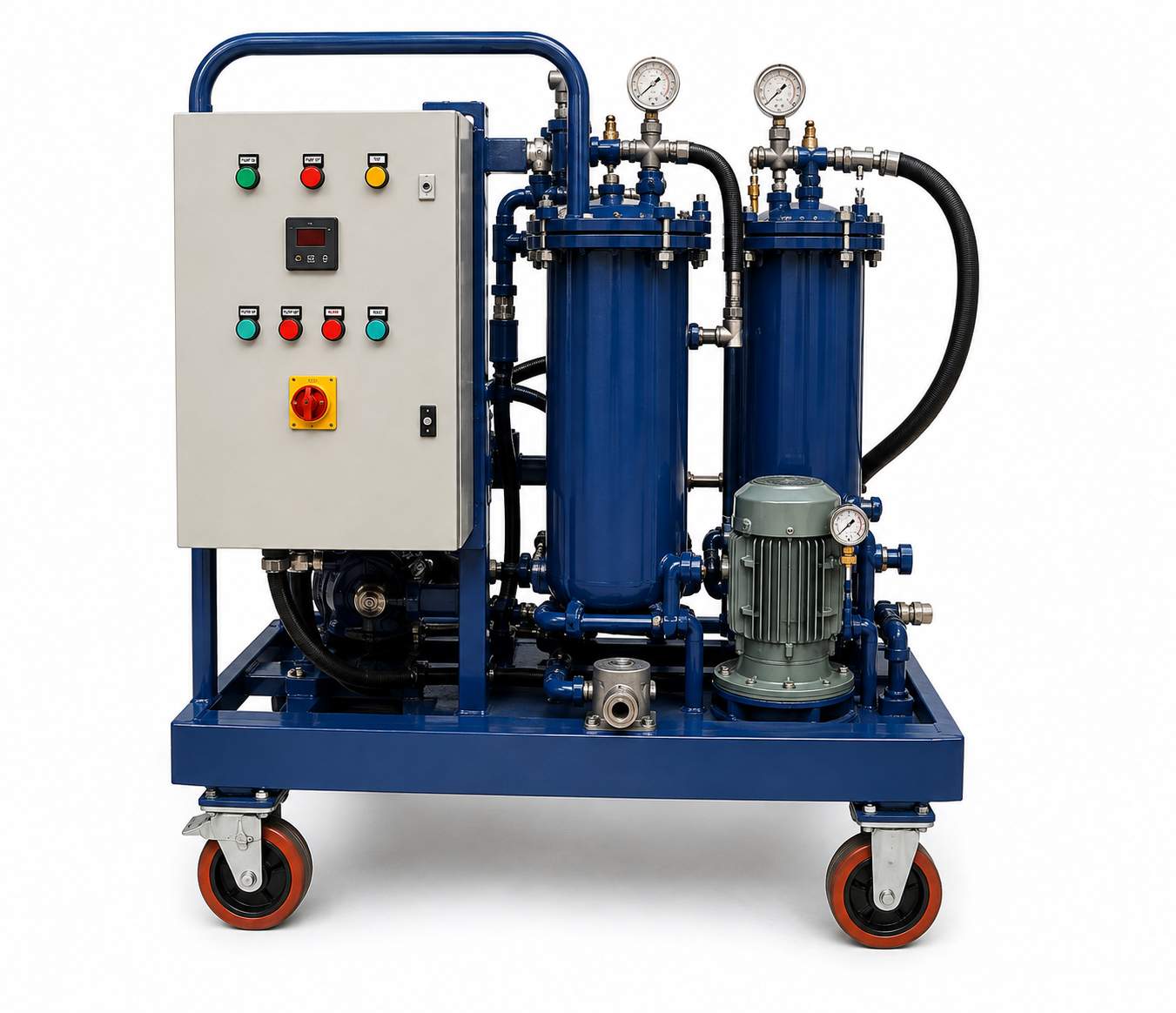

Praimo Hydraulic Oil Filtration System is engineered for multi-stage purification of hydraulic oils. It removes solid contaminants, moisture, varnish and sludge to help maintain oil cleanliness, protect hydraulic components, extend oil life and reduce equipment downtime. The portable skid-mounted design provides practical operation and maintenance for industrial hydraulic applications.

APPLICATIONS:
Hydraulic Power Units (HPU), Steel Plants, Cement Plants, Mining, Marine, Power Plants, Manufacturing, Injection Moulding and Oil & Gas.

FEATURES:
• High-efficiency multi-stage filtration
• Removes solid particles and moisture
• Helps remove varnish and sludge
• Portable skid-mounted design
• Heavy-duty industrial construction
• Continuous oil purification
• Easy operation and maintenance
• Application-specific engineering available
• Integrated oil tank / reservoir
• Gear pump for oil circulation
• Main filter housing
• Return line filter
• Pressure gauge
• Control panel

BENEFITS:
• Extends hydraulic oil life
• Reduces maintenance costs
• Helps prevent pump and valve wear
• Improves equipment reliability
• Reduces machine downtime
• Enhances overall hydraulic system performance
• Helps maintain cleaner hydraulic oil
• Supports smooth and reliable operation
• Protects critical hydraulic components

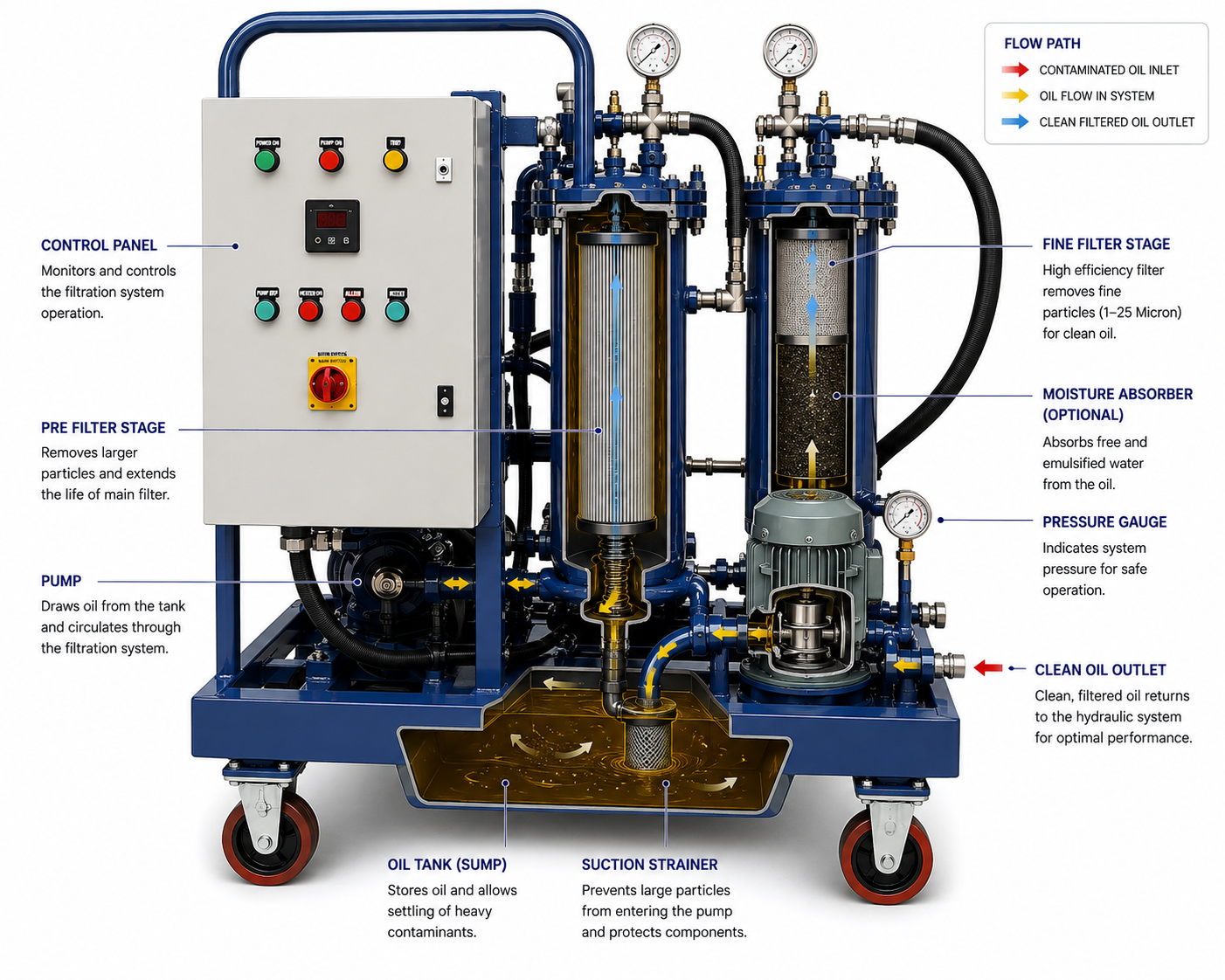

FILTRATION FLOW:
Oil Tank → Suction Strainer → Gear Pump → Main Filter Housing → Return Line Filter → Clean Oil Outlet

CONTAMINANT REMOVAL:
• Solid particles
• Moisture
• Varnish
• Sludge
• Other oil contaminants

TECHNICAL SPECIFICATIONS:
Filtration Rating: 1–25 Micron
Flow Rate: Up to 600 LPM
Viscosity Range: 10–320 cSt
Operating Temperature: Up to 80°C
Operating Pressure: Up to 10 Bar
Filtration Stages: High-efficiency multi-stage filtration
Contaminant Removal: Solid particles, moisture, varnish and sludge
Design: Portable skid-mounted system
Operation: Continuous oil purification

MAIN COMPONENTS:
• Oil Tank / Reservoir
• Suction Strainer
• Electric Motor
• Gear Pump
• Main Filter Housing
• Filter Element
• Return Line Filter
• Pressure Gauge
• Control Panel
• Piping and Valves

OTHER INFORMATION:
Praimo Hydraulic Oil Filtration Systems are custom-engineered according to the hydraulic oil type, viscosity, required flow rate, contamination level, operating pressure, temperature and application requirements. Final system configuration should be confirmed before quotation.

CUSTOMIZATION:
• Filtration rating
• Flow capacity
• Number of filtration stages
• Filter housing configuration
• Filter element specification
• Oil tank capacity
• Pump capacity
• Motor specification
• Piping arrangement
• Connection type
• Control panel configuration
• Pressure requirement
• Temperature requirement
• Skid dimensions
• Application-specific engineering

SHIPPING:
Secure industrial packing suitable for transportation. Skid-mounted equipment is prepared for safe handling and transportation. Freight, delivery schedule and packing requirements depend on system size, configuration, destination and order quantity.

ORDER DETAILS:
Price: ₹48,500 indicative listing price
MOQ: Contact Praimo
Stock Availability: Contact Praimo
Lead Time: Confirm at quotation
Country of Origin: India
Manufacturer: Praimo Industrial Filters & Spares Manufacturing Company
Location: Ahmedabad, Gujarat, India
Website: https://praimo.com
Email: sales@praimo.com
Phone: +91 88668 82222
