Wound Filter Cartridge

Wound Filter Cartridge

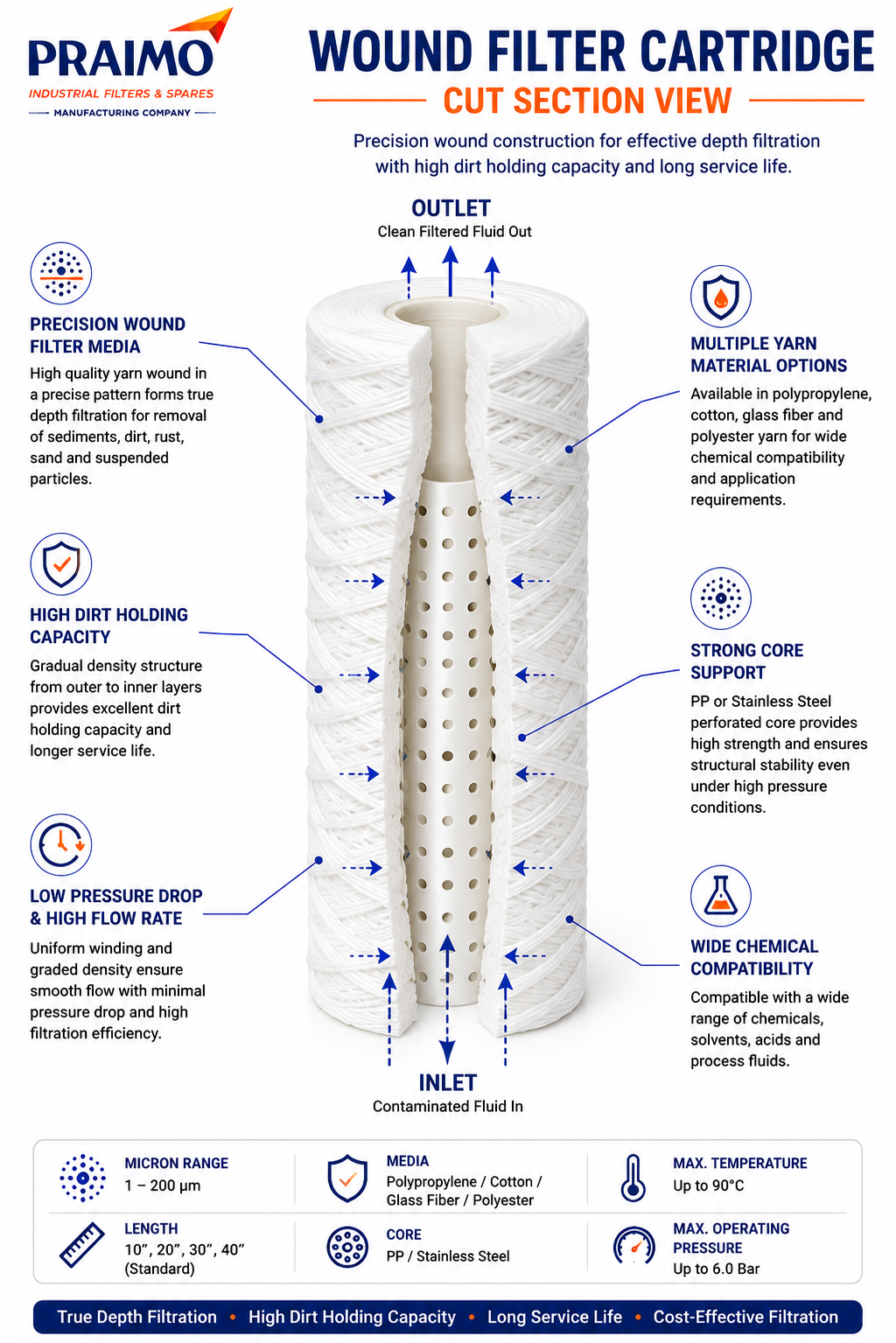

Praimo Wound Filter Cartridge is manufactured using high-quality yarn wound in a precise pattern on a strong core to provide true depth filtration. It effectively removes sediments, dirt, rust, sand and suspended particles from liquids while providing high dirt-holding capacity, low pressure drop and long service life.

APPLICATIONS:
Water Treatment, RO Systems, Pharmaceutical Industry, Food & Beverage, Chemical Processing, Petrochemical Industry, Paints & Inks and General Industrial Filtration.

FEATURES:
• True depth filtration
• High dirt-holding capacity
• Low pressure drop and high flow rate
• Precision wound construction
• Multiple yarn material options
• Wide chemical compatibility
• Strong PP or stainless steel core support
• Long service life
• Cost-effective filtration
• Available in multiple micron ratings

BENEFITS:
• Effective removal of sediments, dirt, rust, sand and suspended particles
• High contaminant-holding capacity
• Longer service life
• Fewer cartridge changes
• Smooth flow with minimal pressure drop
• Wide compatibility with chemicals and process fluids
• Reusable housing-compatible filtration solution
• Cost-effective industrial filtration

TECHNICAL SPECIFICATIONS:
Material / Media: Polypropylene / Cotton / Glass Fiber / Polyester
Micron Rating: 1–200 µm
Core Material: PP / Stainless Steel
Standard Lengths: 10 / 20 / 30 / 40 inches
Operating Temperature: Up to 90°C
Maximum Operating Pressure: Up to 6.0 Bar
End Caps: DOE / SOE / 222 / 226
Filtration Type: True Depth Filtration
Recommended Change-Out: When pressure drop reaches 1.5–2.0 Bar or as per operating condition

AVAILABLE MICRON RATINGS:
1 / 5 / 10 / 20 / 25 / 30 / 50 / 75 / 100 / 150 / 200 µm

YARN MATERIAL OPTIONS:
• Polypropylene (PP) – For general liquid filtration
• Cotton – For high temperature applications
• Glass Fiber – For high temperature and chemical-resistant applications
• Polyester – For solvent and chemical applications

OTHER INFORMATION:
Praimo Wound Filter Cartridges are available in multiple yarn materials, micron ratings, core materials, end-cap configurations and standard lengths. Selection should be based on fluid type, required filtration rating, flow rate, temperature, pressure and chemical compatibility.

CUSTOMIZATION:
• Polypropylene / Cotton / Glass Fiber / Polyester yarn
• PP / Stainless Steel core
• Micron rating
• Cartridge length
• Cartridge diameter
• DOE / SOE / 222 / 226 end caps
• Custom dimensions
• Application-specific filtration configuration
• Material selection according to chemical compatibility

SHIPPING:
Secure industrial packing suitable for transportation. Freight, packaging and delivery time depend on destination, cartridge configuration and order quantity.

ORDER DETAILS:
Price: ₹750 indicative listing price
MOQ: Contact Praimo
Stock Availability: Contact Praimo
Lead Time: Confirm at quotation
Country of Origin: India
Manufacturer: Praimo Industrial Filters & Spares Manufacturing Company
Location: Ahmedabad, Gujarat, India
Website: https://praimo.com
Email: sales@praimo.com
Phone: +91 88668 82222
