PTFE Filter Cartridge

PTFE Filter Cartridge

Praimo PTFE Filter Cartridge is manufactured with premium PTFE membrane media and polypropylene support for demanding filtration applications requiring exceptional chemical compatibility, high filtration efficiency and long service life. The cartridge is designed for critical process filtration where aggressive chemicals and sensitive process fluids require reliable contamination control.

APPLICATIONS:
Chemical Processing, Pharmaceutical, Food & Beverage, Electronics & Semiconductor, Biotechnology, Water Treatment, Oil & Gas, Paint & Coatings, Power and Automotive Industries.

FEATURES:
• Premium PTFE membrane filtration media
• Excellent chemical resistance
• High filtration efficiency
• Absolute filtration capability
• Low pressure drop
• High flow capacity
• Wide chemical compatibility
• High temperature resistance
• Integrity testable
• Long service life
• Superior reliability
• Polypropylene support layers for mechanical strength
• Pleated structure for increased filtration area
• Multiple end connection options
• Steam sterilizable

BENEFITS:
• Handles aggressive chemicals and corrosive process fluids
• Provides high contaminant retention
• Protects sensitive downstream equipment
• Supports critical-process filtration
• Provides reliable filtration performance
• Supports high flow with low pressure drop
• Suitable for demanding chemical and pharmaceutical processes
• Helps reduce maintenance requirements
• Supports high-purity filtration applications

TECHNICAL SPECIFICATIONS:
Filtration Media: PTFE Membrane with PP Support
Micron Rating: 0.1–50 µm
Operating Temperature: Up to 200°C
Pressure Rating: Up to 10 Bar Differential
Reusable: No
Filtration Type: Membrane Filtration
End Connection Options: DOE / SOE / 222 / 226
Standard Lengths: 10 / 20 / 30 / 40 inch
Chemical Compatibility: Excellent
Sterilization: Steam Sterilizable
Flow Direction: Contaminated Fluid In → Clean Filtrate Out

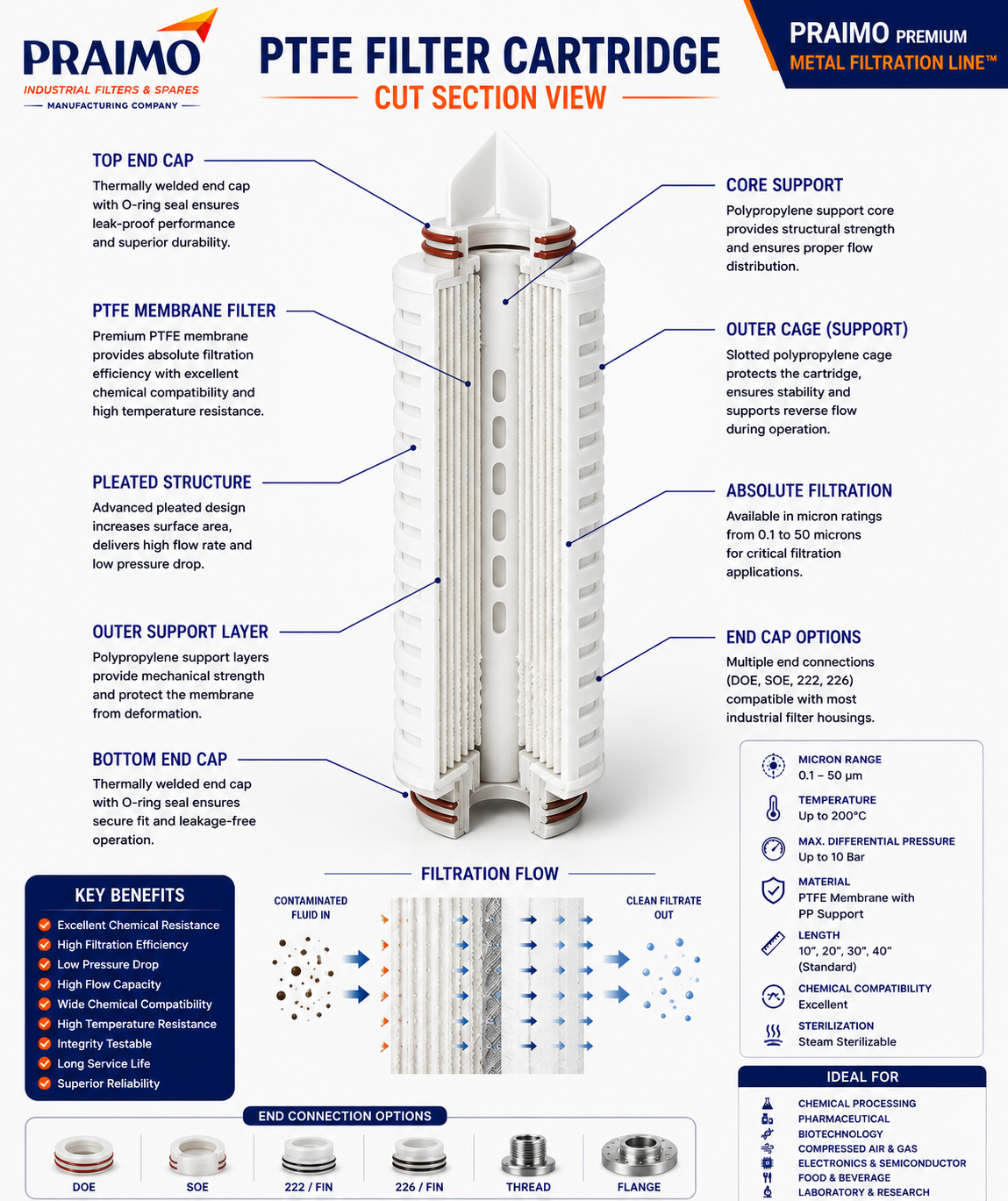

CONSTRUCTION:
PTFE membrane provides high-efficiency absolute filtration and excellent chemical compatibility. Polypropylene support layers provide mechanical strength and protect the membrane. The pleated structure increases surface area and supports high flow with low pressure drop. End caps and O-ring seals provide secure, leak-resistant installation.

OTHER INFORMATION:
Final PTFE membrane grade, micron rating, dimensions, end connection, temperature and pressure suitability must be confirmed for the specific application and filter housing before quotation.

AVAILABLE END CONNECTIONS:
• DOE
• SOE
• 222 / Fin
• 226 / Fin
• Threaded
• Flange

CUSTOMIZATION:
• PTFE membrane specification
• Micron / filtration rating
• Cartridge length
• Cartridge diameter
• End connection
• DOE / SOE / 222 / 226 configuration
• Threaded / flange connection
• O-ring / gasket material
• Custom dimensions
• Application-specific filtration configuration

SHIPPING:
Secure industrial packing suitable for transportation. Freight, packaging and delivery time depend on destination, cartridge configuration and order quantity.

ORDER DETAILS:
Price: ₹3,800 indicative listing price
MOQ: Contact Praimo
Stock Availability: Contact Praimo
Lead Time: Confirm at quotation
Country of Origin: India
Manufacturer: Praimo Industrial Filters & Spares Manufacturing Company
Location: Ahmedabad, Gujarat, India
Website: https://praimo.com
Email: sales@praimo.com
Phone: +91 88668 82222
